©H1z Z-Max G185 Hurricane Rafter Tie
©H1Z Z-MAX G185 HURRICANE RAFTProduct Overview
Simpson Strong-Tie H series of hurricane ties provide a positive connection between truss/rafter and the wall of the structure to resist wind and seismic forces. The Strong-Tie H1Z Hurricane Tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.

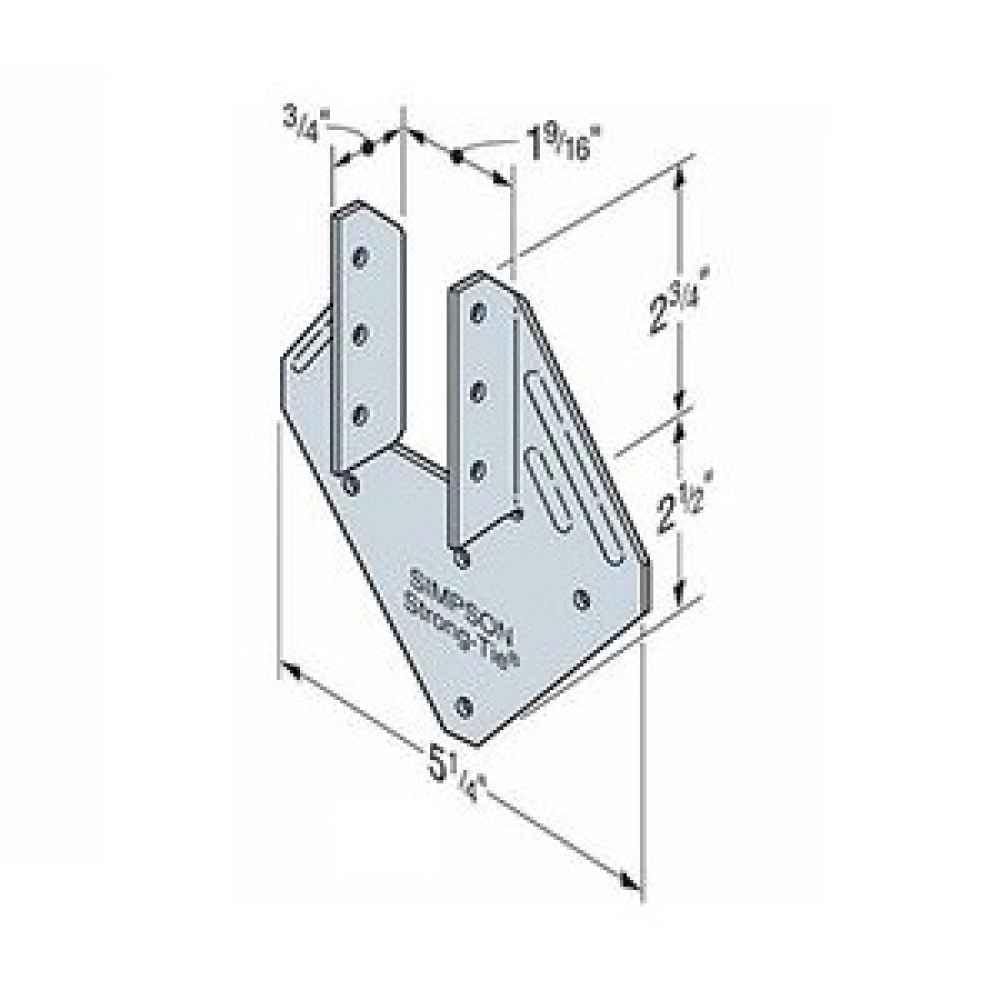

- H1 can be installed with flanges facing inwards (reverse of H1 drawing).
- Hurricane ties do not replace solid blocking.
- When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.
Product Specifications
| Brand | Simpson Strong-Tie |
| Finish Spec | G90 Galvanized |
| Fasteners Required | To Rafters/Truss - (6) 0.131" x 1-1/2" Nails OR (6) SD9112 ScrewsTop Plates - (4) 0.131" x 2-1/2" Nails OR (4) SD9112 Screws |
| For Treated Lumber | No |
| Thickness | 18 Gauge |
